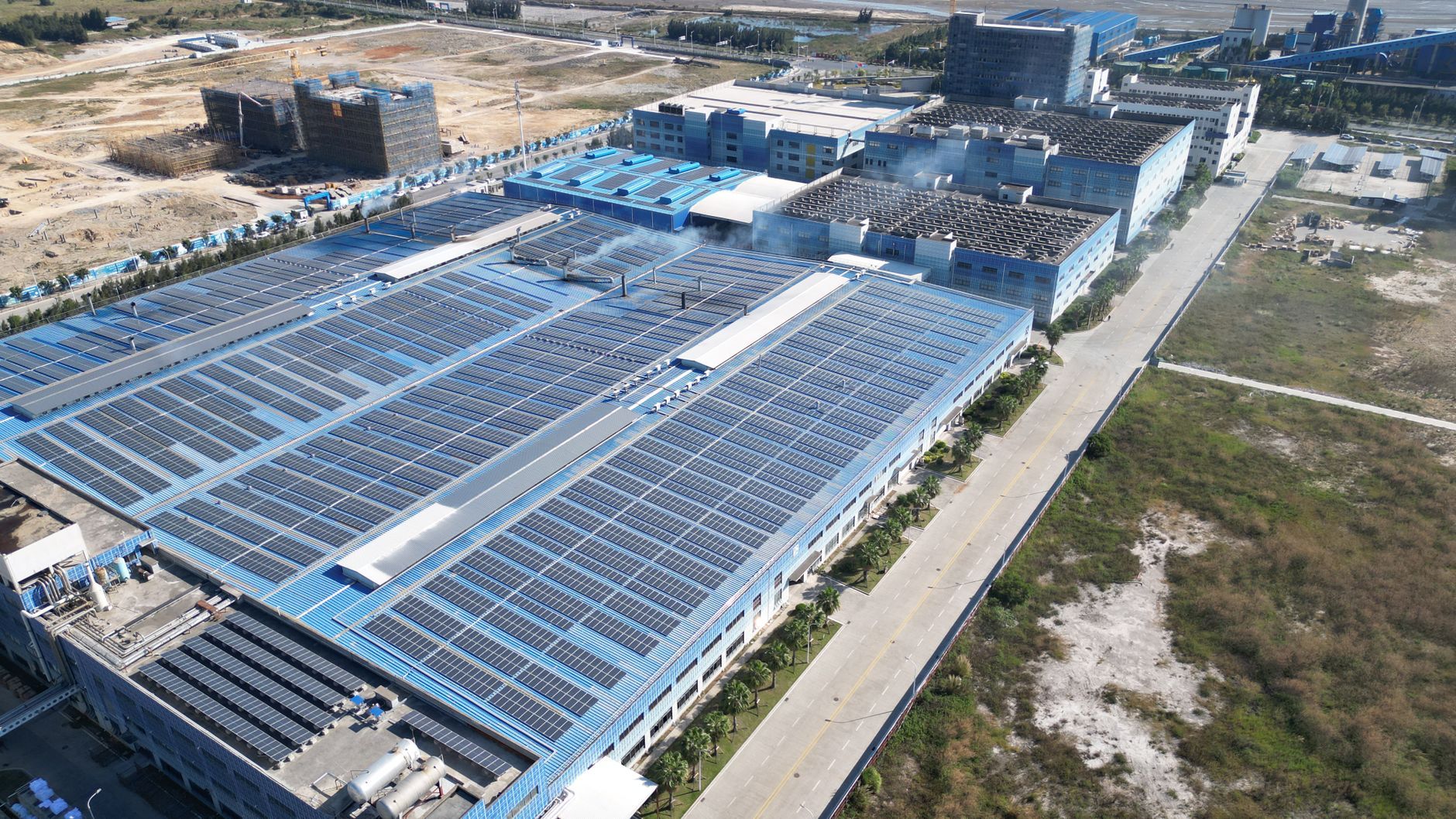

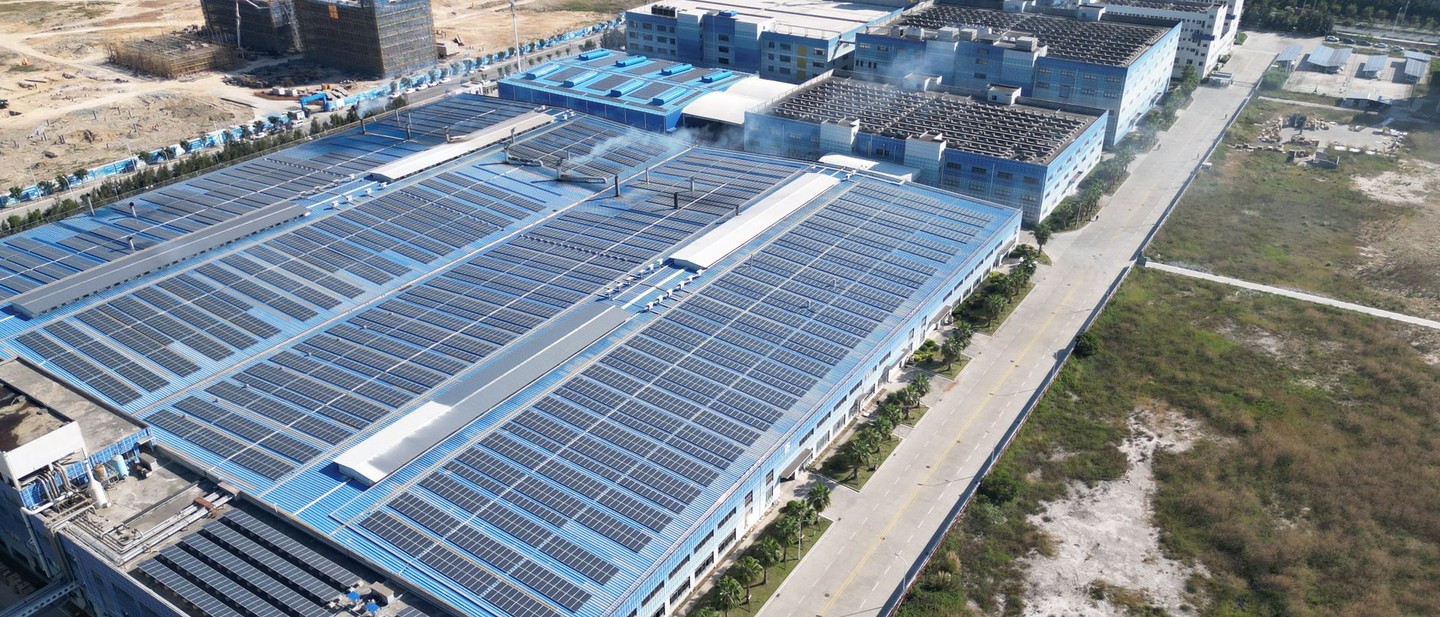

Understanding AC vs DC Solar Panels for EPC Projects

What AC and DC Solar Panels Are and Why EPCs Care

Solar photovoltaic (PV) modules generate electricity when sunlight excites electrons in semiconductor material. The electricity produced by the cells is direct current (DC), as defined by the U.S. Department of Energy’s acronym list where DC stands for direct current. In most commercial installations the DC is routed to a central inverter that converts it to alternating current (AC) for grid connection.

Some manufacturers pair standard modules with micro‑inverters that are installed on the back of each panel, converting the module’s DC to AC close to the panel. This configuration changes system architecture, wiring, and commissioning procedures.

Historically, large‑scale EPC projects relied almost exclusively on central inverters because the added weight, cost, and maintenance complexity of a micro‑inverter per panel were prohibitive. This shift may reflect broader trends toward modularization and faster installation cycles, prompting EPCs to reassess traditional design assumptions.

PV module manufacturing is a multi‑step process focused on crystalline silicon. The Department of Energy explains that most modules rely on crystalline silicon as the absorber material and outlines the production chain from polysilicon to wafers. Understanding this chain helps EPCs evaluate quality, warranty, and performance guarantees that feed into the decision between AC‑ and DC‑coupled designs.

EPC implication: Selecting AC‑coupled modules reduces the length of DC conduit runs but adds a micro‑inverter to each panel, affecting bill of materials, labor planning, and failure‑mode analysis.

The shift toward AC‑coupled designs reflects a broader industry trend toward modularization and faster installation cycles. Micro‑inverter‑based designs can address challenges such as voltage‑drop on long DC runs and enable panel‑level monitoring, which may reduce overall system downtime. For EPCs, this means the design phase must incorporate the additional weight and mounting considerations of micro‑inverters, as well as their safety requirements described in DOE safety guidelines.

Practical Implications for EPC Project Design

The choice between AC‑ and DC‑coupled modules reshapes several design domains:

• Wiring Architecture – DC‑coupled designs consolidate strings of panels into a few high‑voltage DC cables that feed a central inverter. AC‑coupled designs use individual AC conductors from each panel to an AC combiner, often simplifying conduit routing but increasing the number of connections to manage.
• Inverter Sizing and Placement – With a central inverter, EPCs select a device sized to the total DC array capacity, accounting for inverter loading ratio. AC‑coupled systems eliminate the central inverter, but EPCs must ensure the aggregated AC output complies with grid interconnection limits and that the micro‑inverter rating matches panel output.
• Safety and Code Compliance – DC conductors operate at higher voltages and require specific disconnect requirements. AC‑coupled layouts benefit from standard AC protection devices familiar to electricians. Both approaches must satisfy the International Electrotechnical Commission (IEC) standards referenced in DOE documentation for PV safety and performance.
• Performance Monitoring – Central inverters provide aggregate performance data, whereas micro‑inverters enable panel‑level monitoring, offering granular fault detection. EPCs need to align the monitoring platform with the chosen architecture.
• Lifecycle Costs – The additional hardware per panel in AC‑coupled systems raises upfront material cost but can lower installation labor and reduce losses from DC voltage drop over long runs. EPCs should model both capital expenditure (CAPEX) and operation‑and‑maintenance (O&M) impacts early in the proposal.

Common Mistakes or Edge Cases

Even experienced EPCs encounter pitfalls when integrating AC‑ and DC‑coupled technologies:

• Mismatched Wiring Ratings – Using DC‑rated conduit for AC‑coupled panels can violate electrical codes and create safety hazards.
• Assuming Interchangeability – DC‑output modules cannot be connected directly to an AC‑coupled inverter without an additional conversion stage; likewise, AC‑output panels cannot be wired into a traditional DC string without bypassing the embedded inverter.
• Grounding Errors – The grounding scheme for micro‑inverter equipped panels differs from that of a central inverter system; overlooking this can cause nuisance tripping or equipment damage.
• Warranty Overlaps – Module warranties typically cover the PV cells, while micro‑inverter warranties cover the conversion hardware. EPCs must track both to avoid gaps in coverage.
• Grid Code Timing – Some jurisdictions require rapid anti‑islanding response times; micro‑inverters may meet or exceed these limits, but only if the EPC verifies compliance with the relevant IEC standard.

Standards and Benchmarks Guiding AC/DC Choices

International and national bodies provide the technical framework for both architectures:

• IEC 61730 – Safety qualification for PV modules, applicable regardless of output configuration.
• IEC 62109 – Safety requirements for inverters and converters, covering both central and micro‑inverter designs.
• UL 1741 (U.S.) – Certification for grid‑interactive inverters, including specifications for AC‑output modules.
• DOE Technical Resources – The Department of Energy’s PV technology basics page underscores the importance of adhering to recognized standards for system reliability and safety.

EPCs should reference these standards during design reviews, procurement, and commissioning to ensure compliance and to streamline approvals from utilities and regulators.

Why Timing Matters for EPCs Selecting AC or DC Panels

The solar market evolves rapidly, and product availability can affect project schedules. EPCs should consider the following timing factors:

• Product Release Cycles – New micro‑inverter integrated panels are released periodically. Aligning procurement with these cycles can secure the latest efficiency gains.
• Warranty Start Dates – Warranty periods begin at shipment; ordering early can extend effective coverage, especially for micro‑inverter components with shorter lifespans.
• Regulatory Updates – Grid codes may be revised annually. Monitoring changes ensures that the selected architecture remains compliant throughout the project lifespan.
• Supply‑Chain Constraints – Supply‑chain constraints can affect module deliveries; diversified sourcing mitigates risk.
• Financing Milestones – Many lenders tie loan disbursement to equipment procurement dates. Early finalization of the AC/DC decision helps meet financing timelines.

What EPCs Must Do Now

• Verify Module Output Specification – Confirm whether each panel is DC‑output or includes an integrated micro‑inverter.
• Map Wiring Layouts – Draft conduit plans for the chosen architecture, incorporating appropriate voltage‑rating and grounding practices.
• Cross‑Check Standards – Ensure all components meet IEC 61730, IEC 62109, and any jurisdiction‑specific grid codes.
• Align Monitoring Strategy – Select a data‑acquisition platform that supports either aggregate inverter data or panel‑level telemetry.
• Update Procurement Schedules – Incorporate product lead‑times and warranty start dates into the overall project timeline.

Supporting Information

Module Manufacturing Overview

The manufacturing process for crystalline silicon modules begins with polysilicon production, where high‑purity silicon rods or beads are created using the Siemens process or bead‑growth method. The polysilicon is then melted and formed into ingots via the Czochralski or directional solidification processes, after which it is sliced into wafers using diamond‑coated wire saws. Each wafer undergoes texturing, doping, and anti‑reflective coating before cell interconnection, and the assembled cells are laminated between glass and a polymer backsheet to create the final module. The DOE notes that this lamination step provides both mechanical protection and long‑term moisture resistance, which are critical for maintaining performance over a 25‑year design life. For EPCs, understanding the lamination process helps assess module durability claims and informs decisions about handling, storage, and installation practices that preserve the integrity of the encapsulant.

Inverter Technology Basics

Central inverters convert the combined DC output of multiple strings into AC and typically achieve high efficiencies. Micro‑inverters, installed on the back of individual panels, perform the conversion on a per‑panel basis and can provide module‑level monitoring. Inverter designs must satisfy IEC 62109 safety requirements for over‑temperature protection, fault detection, and anti‑islanding performance, which the DOE documentation applies uniformly to both central and micro‑inverter architectures. EPCs should verify that the selected inverter model includes the required safety certifications and that its thermal design aligns with the overall system layout.

Safety and Grounding Guidelines

Both AC and DC systems must adhere to IEC grounding recommendations. DC systems require a dedicated disconnect at the array level, while AC‑coupled installations follow standard AC circuit‑breaker practices. EPCs should reference IEC 62109 for detailed grounding and protection requirements.

Design tip: When mixing AC‑ and DC‑coupled equipment in a hybrid design, isolate the two circuits with separate disconnects and label all conductors clearly to avoid maintenance errors.

Frequently Asked Questions

Q1. What does DC stand for in solar terminology?

DC is the abbreviation for direct current, the type of electricity produced by photovoltaic cells before it is converted to alternating current for grid use. This definition appears in the Department of Energy’s list of acronyms for solar system performance.

Q2. Why are most PV modules referred to as DC panels?

The semiconductor cells generate a unidirectional flow of electrons, which is characteristic of direct current. Consequently, standard modules output DC electricity that must be processed by an inverter to match the grid’s AC waveform. The manufacturing overview confirms that the core PV cell technology is based on crystalline silicon, which inherently produces DC.

Q3. How does an AC‑coupled solar panel differ from a traditional DC panel?

An AC‑coupled panel incorporates a micro‑inverter at the module level, converting the generated DC to AC immediately. This eliminates the need for a central inverter but adds conversion hardware to each panel.

Q4. What are the main wiring considerations for AC‑coupled modules?

Because each panel outputs AC, the wiring scheme uses standard AC conduit and protective devices, similar to conventional building wiring. EPCs must ensure conduit fill, voltage‑drop calculations, and grounding follow IEC guidelines applicable to AC circuits.

Q5. Which standards govern the safety of micro‑inverters in AC panels?

IEC 62109 outlines safety requirements for inverters and converters, covering both central and micro‑inverter designs. Compliance with this standard ensures that the embedded conversion hardware meets international safety benchmarks.

Q6. How should EPCs handle warranty management for AC‑coupled solutions?

Module warranties usually cover the photovoltaic cells, while micro‑inverter warranties cover the conversion electronics. EPCs must track both warranty periods separately and align maintenance schedules to avoid gaps. Manufacturer documentation typically outlines the warranty start date as the date of shipment.

Q7. Is there a cost advantage to choosing AC‑coupled panels?

Upfront material costs are higher because each panel includes a micro‑inverter, but labor savings from simplified DC wiring and the potential for earlier fault detection can offset the initial expense. Detailed cost‑benefit analysis should be performed for each project.

Q8. Where can EPCs find more technical guidance on AC versus DC system design?

The U.S. Department of Energy provides a suite of technical resources on photovoltaic technology, manufacturing processes, and system performance that serve as a foundational reference for both AC‑ and DC‑coupled designs.

Q9. Can existing DC‑coupled installations be retrofitted with AC‑coupled modules?

DOE guidance recommends that retrofitting a DC‑coupled system with AC‑coupled modules requires replacing the entire module set and redesigning the balance‑of‑system wiring, which can be economically unfavorable compared with building a new system. The guidance stresses evaluating lifecycle cost before undertaking such a conversion.
